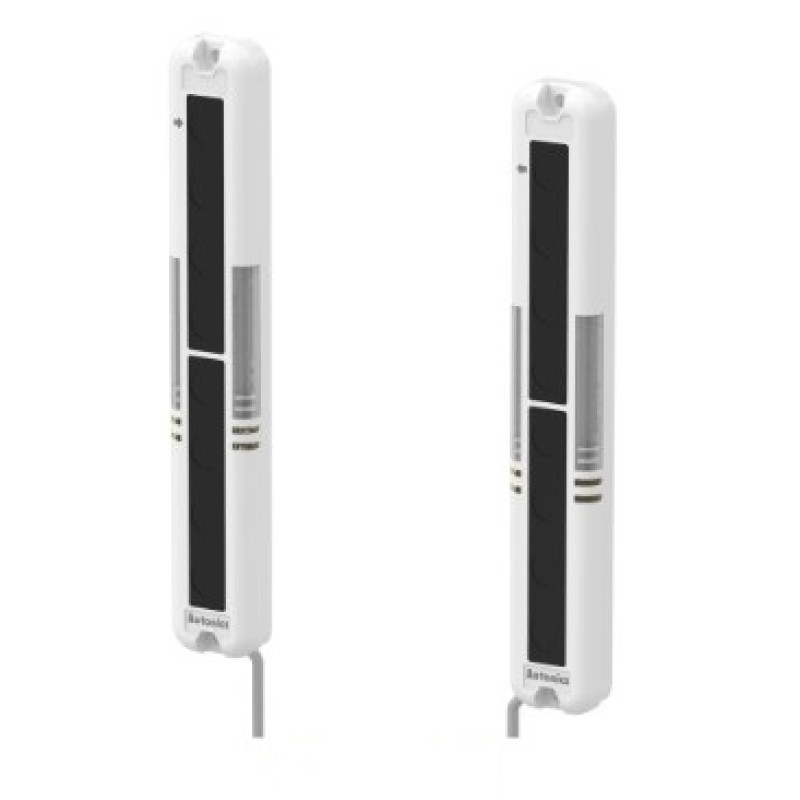

BWP20-20P Area Sensor 12-24VDC

• Sensing type : Through-beam type(direct beam)
• Sensing distance : 0.1 to 5m
• Light source : Infrared LED(850nm modulated)
• Optical axis pitch : 20mm
• Number of optical axes : 20
• Power voltage : 12-24VDC ±10%(ripple P-P: max. 10%)
• Control output : PNP open collector
• Operation mode : Light ON/Dark ON(set by switch)

Sensing type	Through-beam type(direct beam)
Sensing distance	0.1 to 5m
Light source	Infrared LED(850nm modulated)
Optical axis pitch	20mm
Number of optical axes	20
Sensing height/Total length	380/430mm
Power voltage	12-24VDC  ±10%(ripple P-P: max. 10%)
Control output	PNP open collector
Operation mode	Light ON/Dark ON(set by switch)
Environment_Ambient illumination	Sunlight: Max. 10,000lx(receiver illumination)
Environment_Ambient temperature	-10 to 55℃, storage: -20 to 60℃
Connection type	Cable type(Ø3.5, 3m)
Protection structure	IP40
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Min. sensing target	Opaque material of min. Ø30mm
Response time	Max. 6ms(frequency B selection is max. 7ms)
Material	Case: Polycarbonate/Acrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate
Cable specification	Ø3.5mm, 4-wire, 3m(emitter: Ø3.5mm, 4-wire, 3m) (AWG 24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: Ø1mm)
Weight	Approx. 680g(approx. 430g)

WP20-20P Area Sensor 12–24VDC

The BWP20-20P Area Sensor is a high-precision area detection sensor designed for industrial automation and safety applications. Operating with a 12–24VDC power supply, it can be easily integrated into various automation and control systems.

With a wide detection area and fast response time, it is ideal for object detection, area protection, and operator safety applications. Its robust housing ensures reliable and long-term performance even in harsh industrial environments.

Key Features

• Wide operating voltage range: 12–24VDC

• High-precision area detection

• Fast response time

• Compatible with industrial automation systems

• Suitable for machine safety and area protection

• Durable and long-lasting design

Applications

• Industrial automation systems

• Machine safety solutions

• Production lines

• Conveyor systems

• Area protection and access control

WP20-20P Alan Sensörü 12–24VDC

BWP20-20P Alan Sensörü, endüstriyel otomasyon uygulamalarında alan algılama ve güvenlik amaçlı kullanılan, yüksek hassasiyetli bir alan sensörüdür. 12–24VDC çalışma gerilimi sayesinde birçok otomasyon sistemine kolayca entegre edilebilir. Makine emniyeti, üretim hatları ve otomatik kontrol sistemlerinde güvenilir performans sunar.

Geniş algılama alanı ve hızlı tepki süresi ile nesne algılama, alan koruma ve operatör güvenliği gibi kritik uygulamalarda tercih edilir. Dayanıklı gövde yapısı sayesinde zorlu endüstriyel ortamlarda uzun ömürlü kullanım sağlar.

Öne Çıkan Özellikler

• 12–24VDC geniş çalışma gerilimi

• Yüksek hassasiyetli alan algılama

• Hızlı tepki süresi

• Endüstriyel otomasyon sistemleriyle uyumlu

• Makine güvenliği ve alan koruma uygulamalarına uygun

• Dayanıklı ve uzun ömürlü yapı

Kullanım Alanları

• Endüstriyel otomasyon sistemleri

• Makine emniyeti uygulamaları

• Üretim hatları

• Konveyör sistemleri

• Alan güvenliği ve erişim kontrolü
