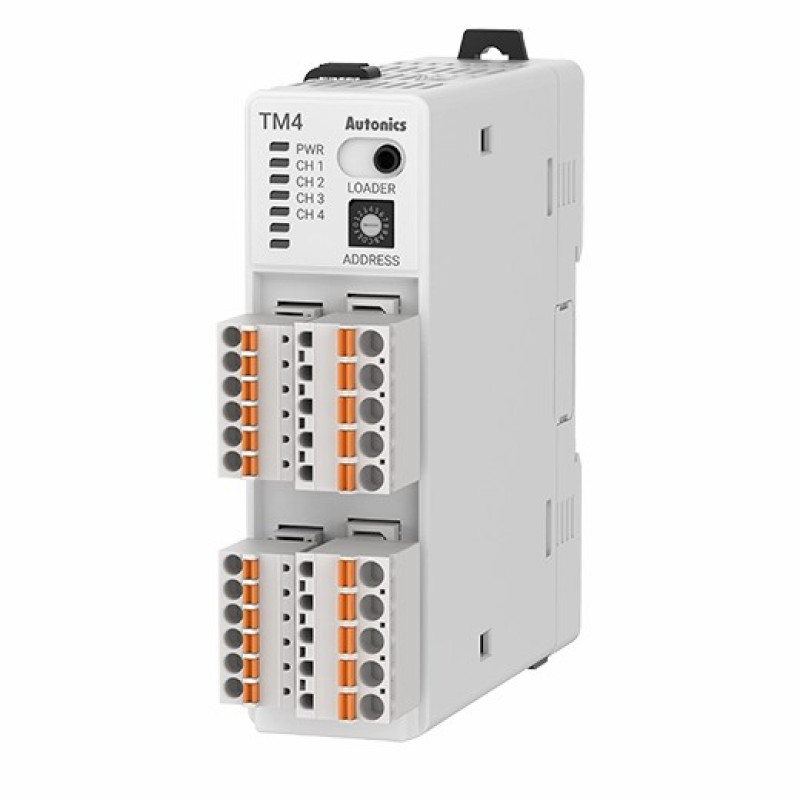

TM4-N2SB (Ç) V2-24VDC-STM32
- Product Code: TM4-N2SB
- Availability: In Stock
223.20€
- Ex Tax: 186.00€
| Number of input channels | 4-channel |
|---|---|
| Power voltage | 24VDC ±10% |
| Power consumption | ≤ 5 W (for Max. load) |
| Sampling cycle | 100ms(4-CH synchronous sampling) |
| RS485 Comm. | Modbus ASCII / RTU |
| Control output | 22 VDC±3 V, ≤ 30 mA |
| Hysteresis | 1 to 100 (0.1 to 100) ℃/℉ |
| Display method | Non-display |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9℃/℉ |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | 0.1 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark, dielectric strength between the measuring input part and the power part: 1kV) |
| Weight_Basic module | Approx. 239g(approx. 174g) |
TM4-N2SB is a high-performance and reliable solution designed for industrial automation and motion control applications. Offering precise control, stable operation, and long service life, TM4-N2SB helps improve efficiency in modern production systems.
With its durable construction and compliance with industrial standards, TM4-N2SB is suitable for automation systems, machine manufacturing, and control applications. Easy integration, low maintenance requirements, and consistent performance make it a cost-effective solution for industrial use.
TM4-N2SB, endüstriyel otomasyon ve hareket kontrol uygulamaları için geliştirilmiş, yüksek performanslı ve güvenilir bir çözümdür. Hassas kontrol, stabil çalışma ve uzun servis ömrü sunan TM4-N2SB, üretim hatlarında verimliliği artırmak üzere tasarlanmıştır.
Dayanıklı yapısı ve endüstriyel standartlara uyumlu tasarımı sayesinde otomasyon sistemleri, makine imalatı ve kontrol uygulamalarında güvenle kullanılabilir. TM4-N2SB, kolay entegrasyon, düşük bakım ihtiyacı ve kararlı performansı ile işletmeler için maliyet avantajı sağlar.
Tags: TM4-N2SB, TM4 N2SB, industrial automation, control module, automation solutions, motion control, industrial control systems
